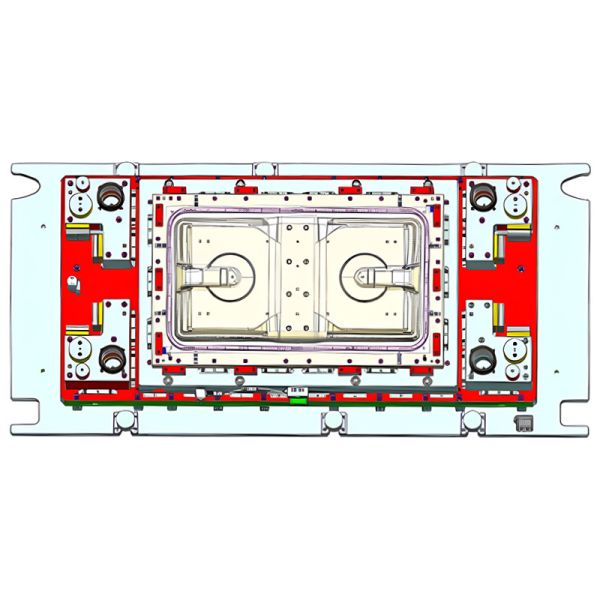

10T Dishwasher Tub Top Stamping Die Components Household Appliances Progressive Die

Brand Name : IDO

Model Number : dishwasher tub top

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Dishwasher tub top

Part Material : SUS430

Mould Type : Stage mold

Mould Size : 2100*1000*600mm

Mould Weight : 10T

Punch Tonnage : 500T

Mould Life : 1,000,000 shots

Standard Parts Brand : MISUMI

Contact Now

SUS430 Dishwasher Tub Top Stage Die Metal Stamping Die For White Household Appliances

Description:

The Advanced, Efficient and Robust Metal Stamping Die for Dishwasher Tub Top Production is meticulously engineered to combine precision forming with long-term durability. Its optimized structure and high-strength materials ensure flawless shaping, reduced cycle times, and consistent quality, empowering manufacturers to achieve superior performance in every production run.

Quick Detail:

Production cycle: 6–14 seconds depending on product.
Maintenance: repair under 30 minutes; tool change under 15 minutes.
Punch edges require sharpening every 300k–500k cycles.
Each die movement controlled by software.
Cabinets need only one press table and tool set, reducing equipment costs.
Only sub-dies removed for maintenance.
One tool set supports multiple models; tool changes via program.

Specifications:

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)

10T Dishwasher Tub Top Stamping Die Components Household Appliances Progressive Die

Product Tags:

Dishwasher stamping die components

10T stamping die components

Household Appliances progressive die
