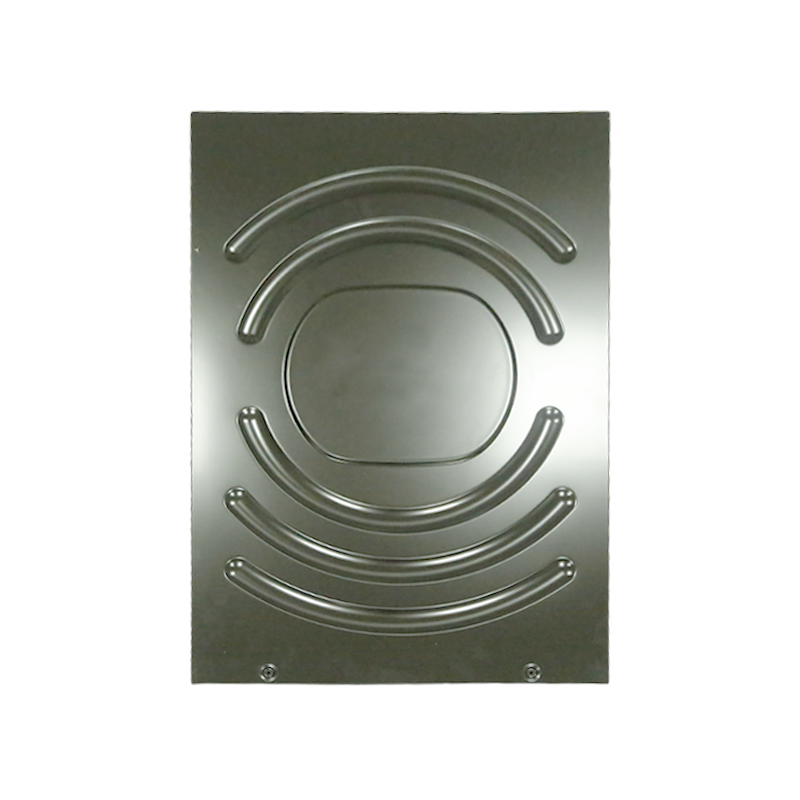

Washing Machine Side Panel Stamping Die Punches DC52D PCM Progressive Stamping 1300mm

Brand Name : IDO

Model Number : washing machine side panel

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Washing machine side panel

Part Material : DC52D-PCM

Mould Type : Stage mold

Mould Size : 1300*700*560mm

Mould Weight : 3T

Punch Tonnage : 250T

Mould Life : 1,000,000 shots

Standard Parts Brand : MISUMI

Contact Now

Washing Machine Side Panel DC52D PCM Stage Die Metal Stamping Die Mould Size 1300 700 560mm

Description:

The Washing Machine Side Panel Metal Stamping Mold stands as a refined cornerstone in home appliance manufacturing, tailored exclusively for the high-precision forming of metal side panels in washing machines. Beyond mere functionality, it embodies a synergy of structural ingenuity and craftsmanship—ensures unwavering stability through thousands of stamping cycles, while its precisely calibrated die cavities translate raw metal sheets into side panels with seamless edges, consistent dimensional accuracy (tolerance ≤ 0.03mm), and the structural resilience to withstand the rigors of washing machine operation.

Quick Detail:

Cycle duration: 6–14 seconds based on product.
Repair possible in 30 minutes; tool change within 15 minutes.
Punch edges need sharpening after 300k–500k strokes.
Die movement controlled via software.
Producing cabinets requires one press table and tools, saving costs.
Sub-dies dismantled individually for maintenance.
One tool set produces multiple models; program manages tool changeover.

Specifications:

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)
